HC·HT高性能拖链装配说明

HC·HT高性能拖链 装配说明

HC· HT高性能拖链|组装

HC·HT-chain|Assembling

1.组装侧板

Assemble side links

将侧板链节斜插入上一链节并扣入

Insert the side links into the other

ones with a little tilt and snap in

2.组装横杆/盖板

Assemble crossbars/lids

将横杆一侧卡脚抵住侧板卡扣位置，在另一侧用手压入或用橡胶锤敲入

put one side foot of crossbar against the clip of side link，

press by hand of knock by a rubber hammer on the other side

将盖板一侧卡脚抵住侧板卡扣位置，在另一侧用手压入或用橡胶锤敲入

Put one side foot of lid against the clip of side link，

press by hand or knock by a rubber hammer on the other side

HC·HT高性能拖链|拆卸

HC·HT-chain|Disassembling

1.拆卸横杆/盖板

Disassemble crossbars/lids

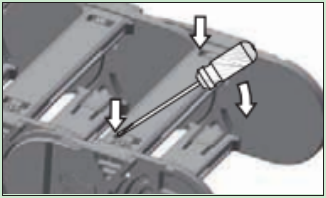

用螺丝刀插入横杆两端槽口，撬起

Insert screwdriver into the two slots of the

crossbar and push down，release by lever action

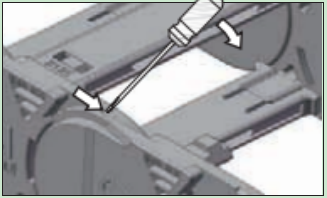

用螺丝刀插入盖板两端槽口，撬起

Insert screwdriver into the two slots of the lid and

push down，release by lever action

2.拆卸侧板

Disassemble side links

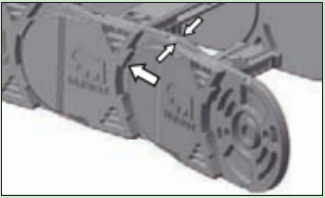

用螺丝刀插入侧板槽口，撬出后拆除

Insert screwdriver into the slot of the side link and push down，

release it by lever action，then remove it
